Barrel
Extrusion plant die requires high accuracy and precision to deliver the qualitative output. We manufacture mainly two types of extrusion plant die for HDPE and RPVC. Each die is made with state-of-the-art machine tools to ensure that you get the best quality pipe. With our team of experts we take care of each dimension tolerance with efficient quality control in each production step.

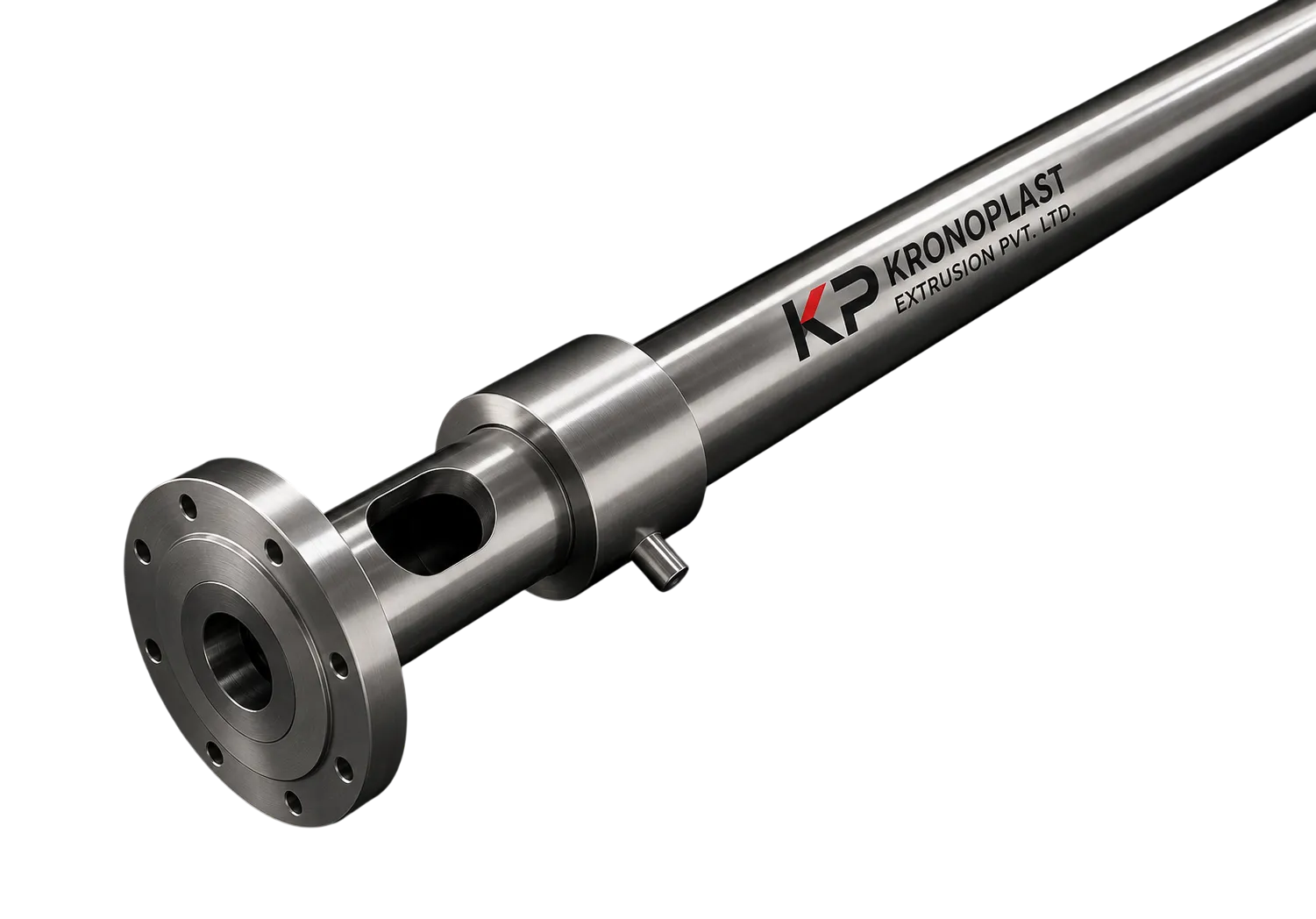

Single Barrel
For each type of single extrusion screw you can get the single extrusion barrel with higher hardness, strong wear resistant and corrosion resistant. We also provide custom design suitable to your extrusion screw.
We manufacture the single barrel with internal diameter (ID) ranging from 20mm to 180mm and length up to 6000mm.
Warranty: We give warranty of 1 to 1.5 year in our Single Barrel
Material: EN41B MUSCO procured from authorized dealer
Nittriding Hardness: 66 to 68 HRC
For better performance, Single Barrel is assembled with Groove Feed made from high quality materials like D2/EN41B.
- Precise positioning of barrel bore
- Best surface quality through honing
- Accurate Compatibility with Die and Gearbox
- Bore is checked with precision gauging machine
- Extraordinary wear-resistance by nitriding
- Preparation of acceptance report
- Windsor Standard
- Kabra Standard
- Lohia Standard
- Mamata Standard
- Rajoo Standard
Orientation Extrusion Machinery
- Extrusion Coating Machine (LD/HD/PP)
- Sheet Extrusion Machine (PP/LD/HD/ABS/PC/HIPS)
- Tape Plan
Blown Film Plant
- MonoLayer Extrusion Plant (LDPE/LLDPE/HM/HDPE/PVC/PP)
- Multi-Layer Film Plant (LDPE/LLDPE/Nylon/HDPE/PP)
Orientation Extrusion Machinery
- PVC Conduit Pipe
- HDPE Pipe
- PVC Suction
- PVC Cable Coating
- PVC Soft Tubing
- PVC Profile
- SPVC Braided Hose

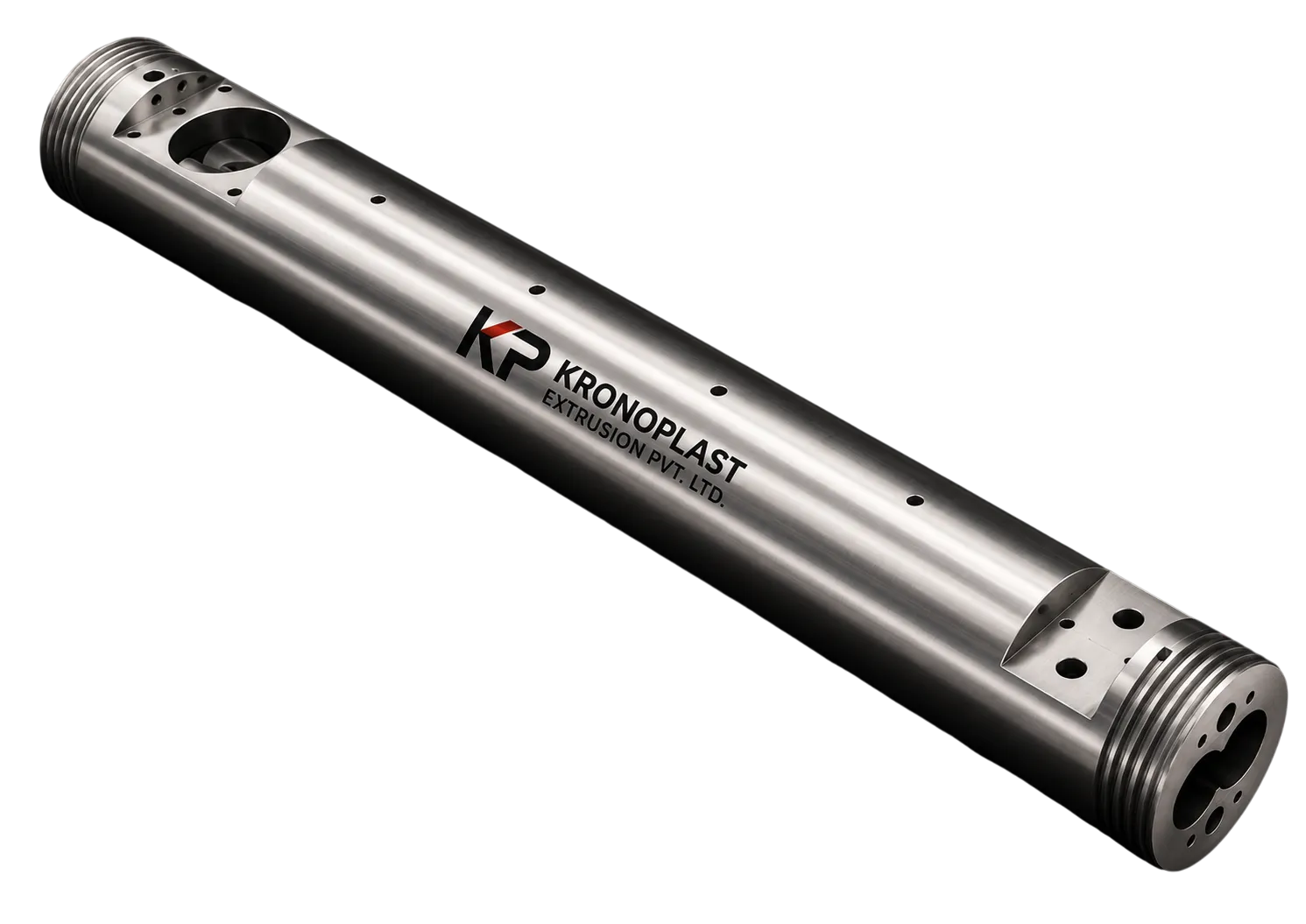

Twin Barrel
We manufacture all types of twin barrel with great durability, greater hardness and corrosion resistant to accommodate the twin screw in extruder. We also provide custom design suitable to your twin screw.
We manufacture twin barrel ranging from id 52mm to 110mm and output capacity ranging from 110 to 900 kg/hr.
Warranty: We give warranty of 1 to 1.5 year in our Twin Barrel
Material: EN41B MUSCO procured from authorized dealer
Nittriding : 66 to 68 HRC
- Precise positioning of twin barrel bores and centre distance
- Extraordinary Surface quality through honing
- No trace of any steps in assembled barrel’s ID bores.
- No Burning and lining problem in production.
- Even better wear resistance capacity with Sleeve Fitted Front Barrel grade M2
- Preparation of acceptance report
- Windsor Standard
- Kabra Standard
- Lohia Standard
- Mamata Standard
- Rajoo Standard
PVC Pipes
- UPVC
- RPVC
- CPVC

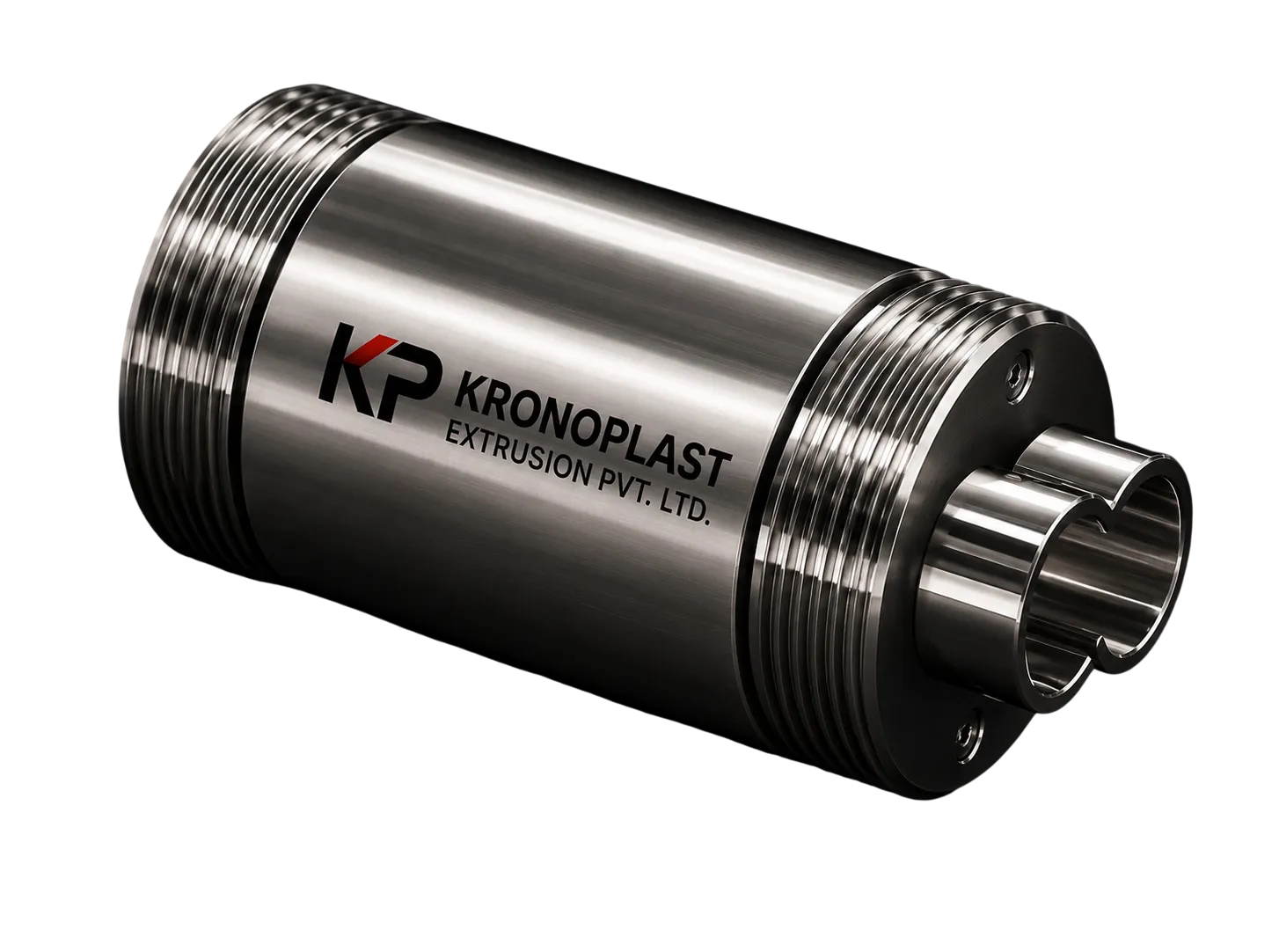

Sleeve Fitted Front Barrel
Each Twin Barrel is fitted with Sleeve Fitted Front Barrel to increase the life of Screw Barrel. In Screws, the Metering section goes under heavy wear. The Screws are protected with Bimetallic coating and in order to protect the Barrel, It is fitted with a Front Barrel with HSS M2 Grade sleeve in it.
Features:
- Certified HSS M2 Material
- Precise fitting with Twin Barrel
- No trace of any steps in assembled barrel ID bores
- No sticking and burning of material

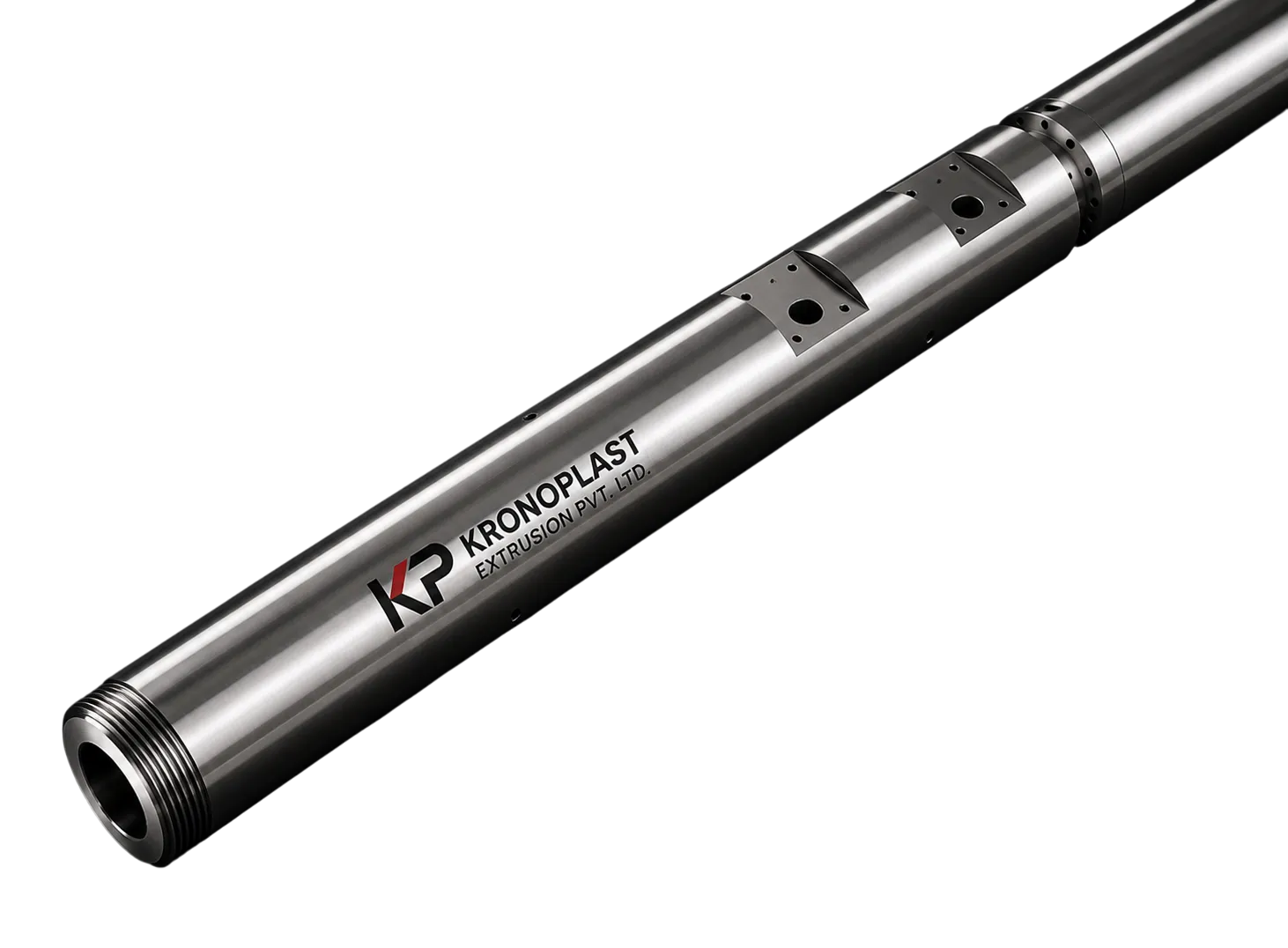

Vented Barrel
We manufacture Vented barrels to accommodate the Vented Barrel.
Material: EN41B MUSCO procured from an authorized dealer
- Greater devolatilization
- Precise positioning of barrel bores
- Best surface quality through honing
- Bore is checked with precision gauging machine
- Extraordinary wear-resistance by nitriding.
- Preparation of acceptance report
- PVC
- HDPE
- PP/PE
- LDPE
- Nylon

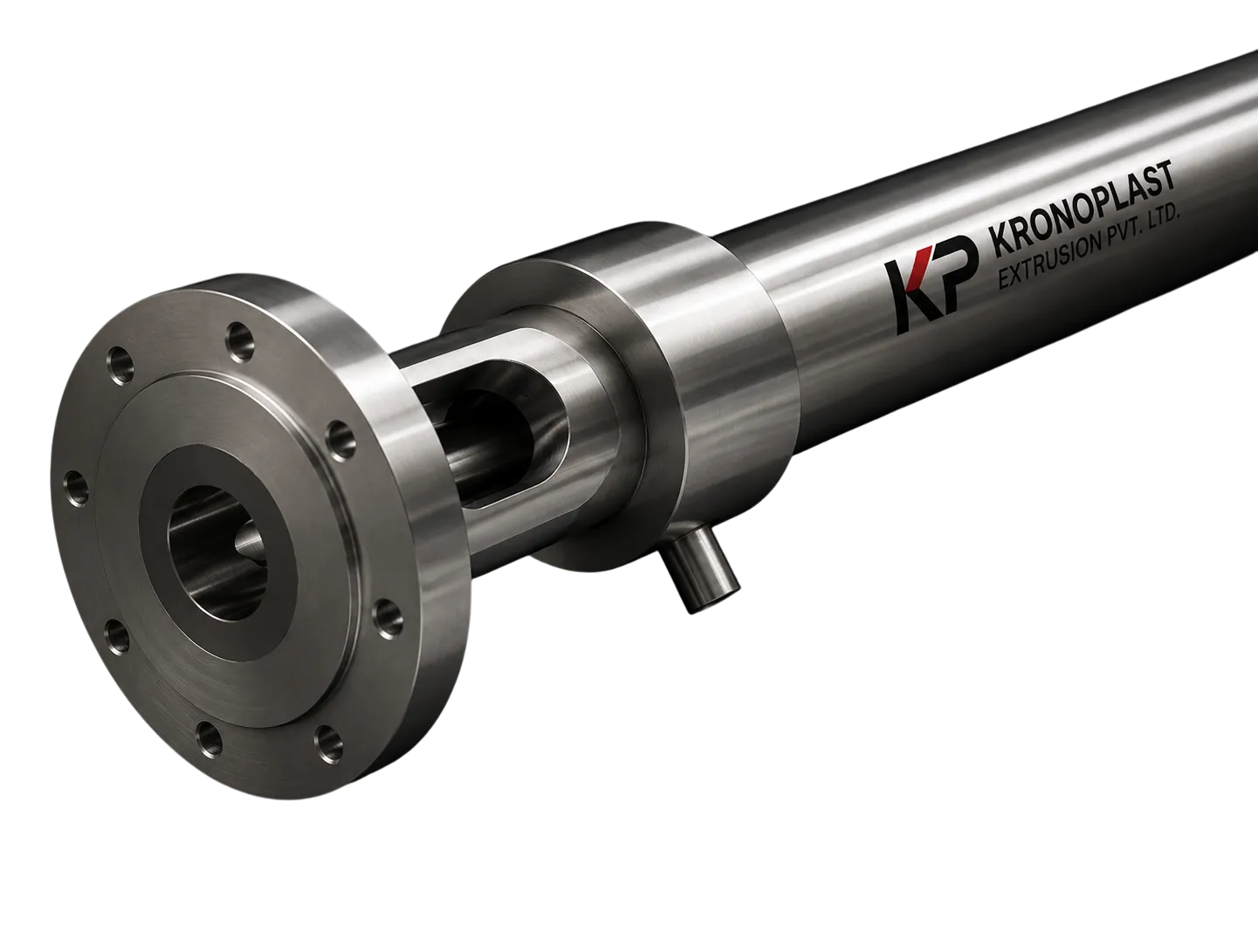

Bimetallic Barrel
We manufacture Vented barrels to accommodate the Vented Barrel.
Material: EN41B MUSCO procured from an authorized dealer
1.5mm to 3mm thicknes
of the bimetallic layer
provides great resistance against the use of
filler materials.
- Greater devolatilization
- Precise positioning of barrel bores
- Best surface quality through honing
- Bore is checked with precision gauging machine
- Extraordinary wear-resistance by nitriding.
- Preparation of acceptance report
- HSS M2 Grade Sleeve Fitting
- Centrifugal Casting
- Blown Film Extrusion
- PE Extrusion
- PVC Extrusion
- Recycling plantsn
