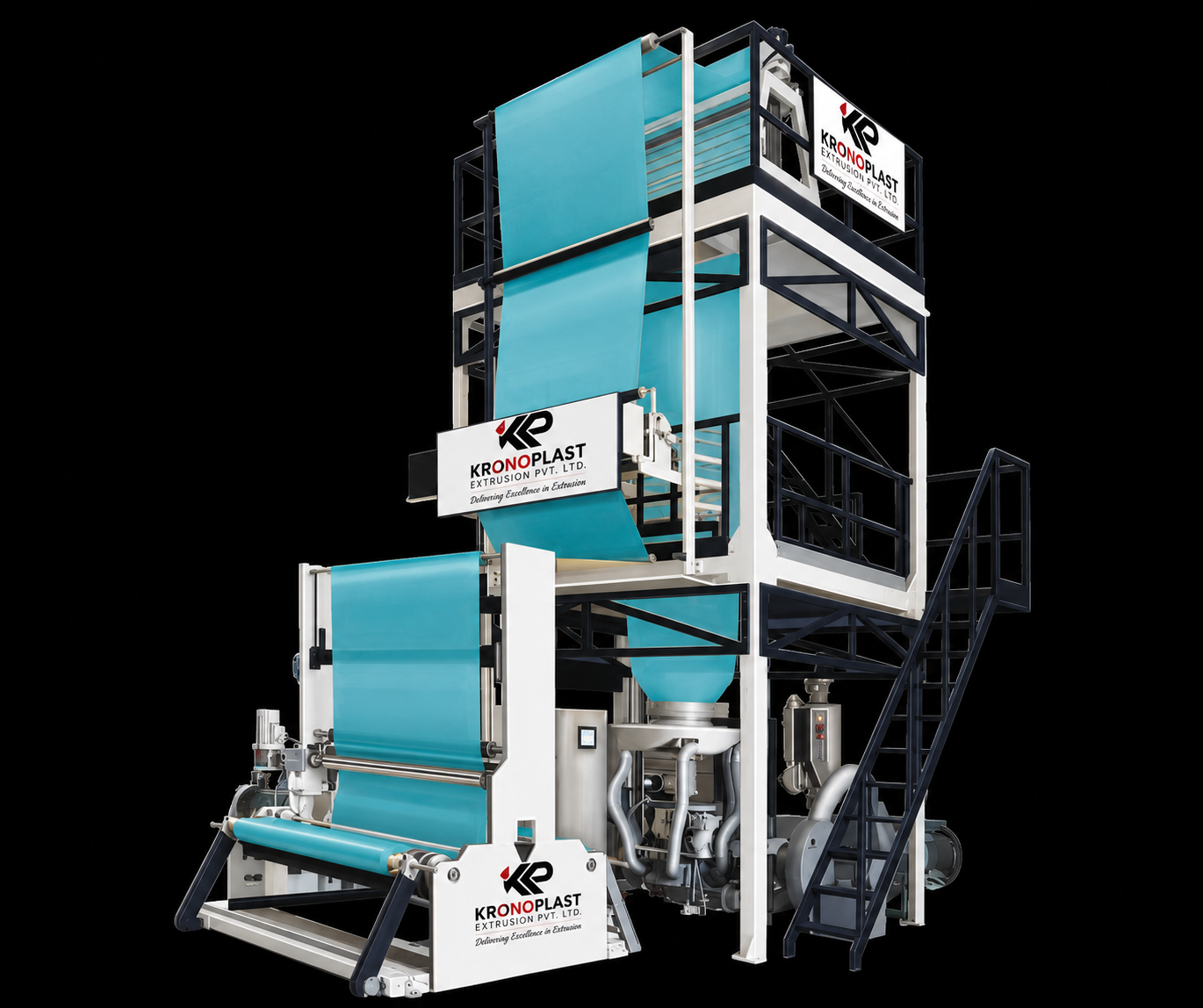

Monolayer Film Plant
Wintech Industries specializes in Monolayer Film Plants designed for a wide range of applications. These plants are known for their efficiency, quality output, and adaptability to different production requirements. They cater to the needs of industries looking for high-performance film production solutions.
Silent Features
-
Latest technology of Mono layer blown film line with high power efficiency, compact model with greater line speed, High production with small size & Efficient for lower thickness of film
-
Latest technology of Mono layer blown film line with high power efficiency, compact model with greater line speed, High production with small size & Efficient for lower thickness of film
-
Latest technology of Mono layer blown film line with high power efficiency, compact model with greater line speed, High production with small size & Efficient for lower thickness of film
Optional Features
-
Hopper loader with dryer
-
Corona Treater
-
Rotary die
-
Web Aligner
-
Screen Changer
-
Gusset assly
Applications
Specifications Of Make Monolayer Plant
| Models | WTMONO-40 | WTMONO-55 | WTMONO-60 |
|---|---|---|---|
| Screw Dia (MM) | 40 | 55 | 60 |
| L/D Ratio | 30:1 | 30:1 | 30:1 |
| Main Motor (Kw) | 11 | 22 | 55 |
| Max Output (Kg/Hr) HM | 40-50 | 85-95 | – |
| Max Output(Kg/Hr) – LL+LD | 35-40 | 75-85 | 140-150 |
| Film Width Rang (MM) | 300-600 | 700-1250 | 1000-1500 |
| Thickness Rang (Microns) | 5-50 | 10-120 | 20-150 |
| Die Size for HM | 50-75 | 125-175 | – |
| Die Size for LL+LD | 90-100 | 250 | 325-350 |
| Roller Size (MM) | 700 | 1350 | 1600 |
| Max Line speed | 80-100 | 80 | 80 |
| Surface Winder | Single Station | Two Station | Two Station |
