We Supply
The Wide Range of Plastic Processinng Machineries beyond the Screw Barrel
With Experience of over 25 years, Tirupati Industries has evolved from screw barrel manufacturer to supplier of Extruders of all kinds like Twin Screw extruder for PVC, Single Screw extruder for PE, Vacuum Sizing Tank, Extended Cooling tank, Pipe Traction unit, Pipe Cutting, and Tilting unit.
Tirupati Industries has collaborated with Wintech Industries, who is famous for their plastic extrusion machine quality and Tirupati industries is the sole supplier of Wintech Industries in India. Wintech Industries is a leading machinery manufacturer especially in Pipe Extrusion Machinery located in Ahmedabad, Gujarat (India). It is well-known for their Extrusion Lines for Single/ Twin Screw suitable to produce RPVC, UPVC, CPVC, HDPE, PPR – widely used in various applications like conduit, Plumbing, Agriculture, Irrigation, Building industries, etc.Wintech Industries has won its customer’s persistent trust by always providing a perfect solution to their specific requirements.

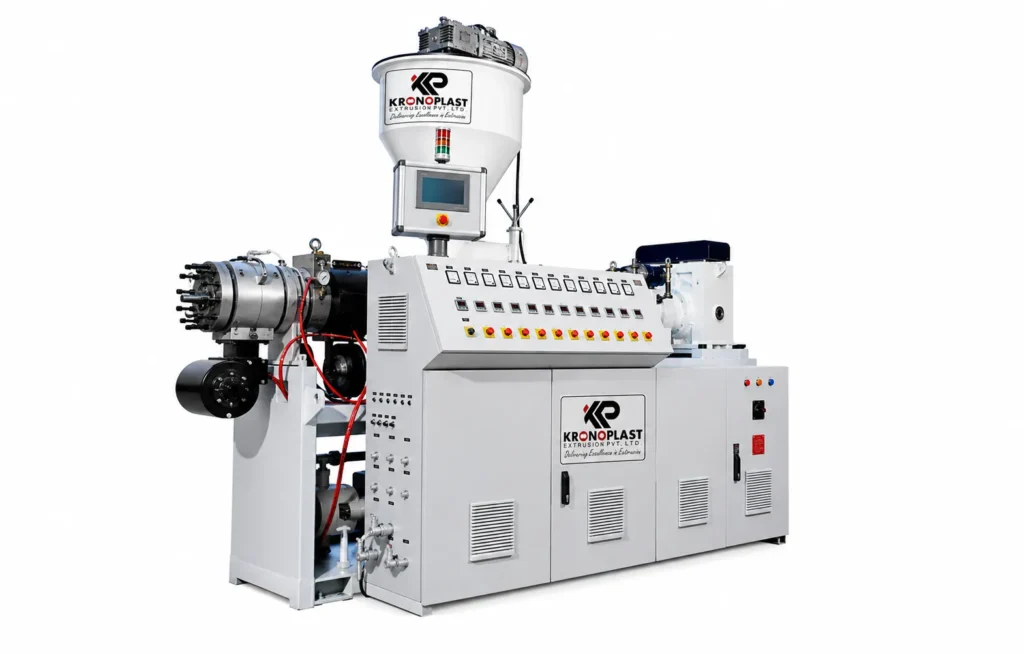

Twin Screw Extrusion Line
PVC is a very heat-sensitive material and difficult to process. Twin Screw Extruder is the proper solution to process the PVC with low power consumption.
We offers a complete range of PVC Pipe Extruders (Twin Screw) suitable to produce pipes ranging in diameter from 20mm to 630mm.
Note: – Output depends upon pipe size and recipe.
Salient Features :
- Less power consumption
- Upgraded and efficient machine design
- Two-Piece Barrel for minimum maintenance
- Uniform pumping is achieved
- High accuracy temp control
- Less wear and tear in Screw Barrel with a special coating on Screws
- Front Barrel with HSS M2 grade Sleeve.
- Faultless Electrical and Electronic components from reputed manufacturers.
- PLC controlled machine with high accuracy.
For the technical specifications, please contact

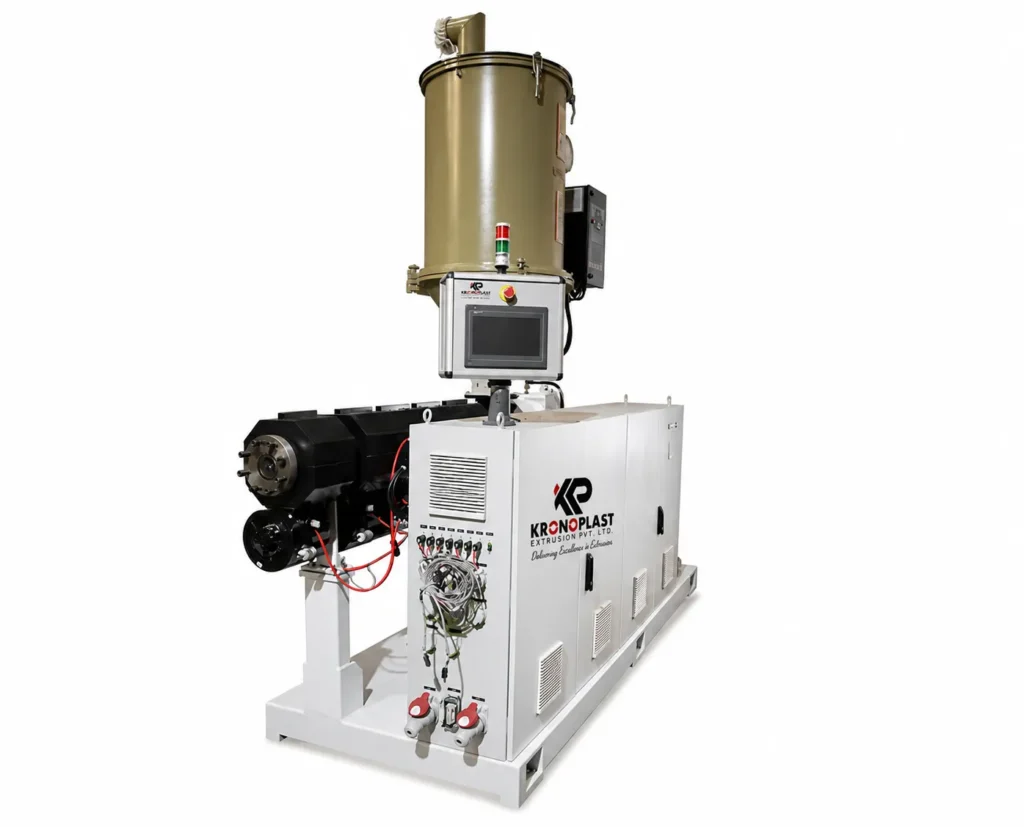

Single Screw PE Extrusion Line – High-Speed Model & Low-Speed Model
We offers a next-generation High-Speed model of a Single Screw Extruder dedicated to Polyolefins materials.
The Screw Barrel of High-Speed model is designed and developed in a way to ensure higher output, low melt temperature, and better result in melt quality. .
High-speed Salient Features
- Higher L/D ratio.
- Next-Generation Machine with higher Screw RPM.
- Proven technology ensures excellent output capacity.
- Direct-coupled designed with minimum friction loss.
- TC coated Screw ensures less wear and tear.
- Higher output with good melt quality.
We Offers Low-Speed Screw Extruder also assembled with Barrier Screw and Groove Feed design.
Barrier Screw allows high homogeneity of plasticizing with lower materials slippage and higher output.
Low-Speed Salient Features
- Qualitative production as compared to the conventional system.
- Linear pressure.
- Uniform throughput.
- Very good Melt pressure and temperature.
- Improved material conveying capacity.
- Low Speed designed Screw and Barrel.
For the technical specifications, please contact

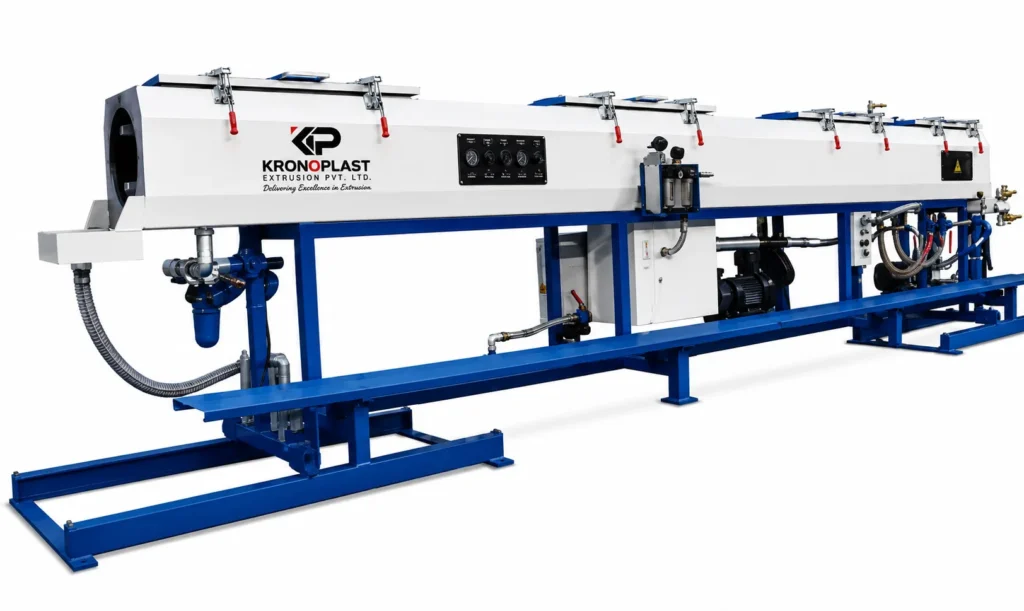

Vacuum Sizing Tank
We manufacture Vaccum Sizing Tank used for the pipe extrusion plant. It is available for pipe sizes ranging from 20mm to 630mm.
Salient Features :
- Vacuum Sizing Tank is available in mild steel as well as in SS 304.
- Highly intensive cooling is provided to ensure a higher production rate.
- Mechanically sealed water ring pumps to ensure proper vacuum inside the chamber.
- Aluminum cast Lids with rubber sealing to avoid vacuum loss.
- Manual and motorized arrangement with sliding rail for axial and traverse movement of the Tank.
- Dual Vacuum Chamber Tank for easy start-up of pipe and less wastage.
- Precise water level control system.
- Adjustable spray nozzle.
- Water temperature controller with Sensor
- Special filter for cleaning during operation.
For the technical specifications, please contact

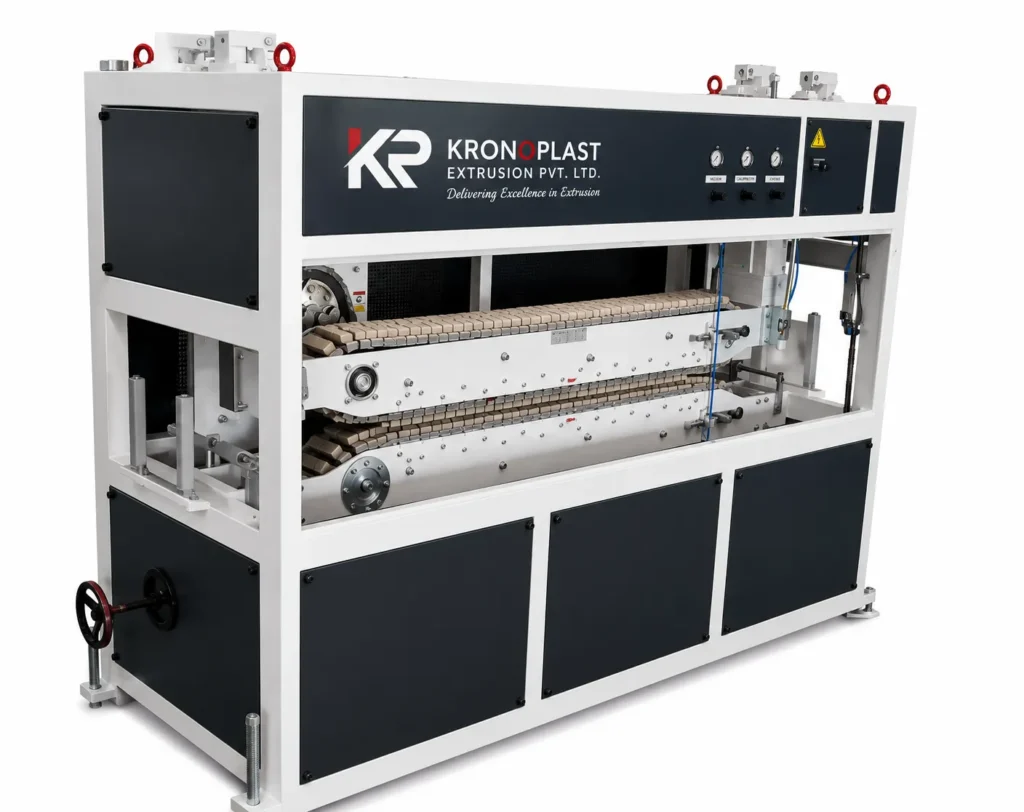

Pipe Traction Unit
- Pipe Traction/ Haul-off units are available up to 6 tracks depending upon Pipe diameter.
- Option of Smith coupling or Direct Coupled Gear Box as per customer demand.
- Pneumatical track adjustment.
- Counterbalance arrangement to balance the weight of tracks for the thin pipes.
- Highly accurate encoder for Length measurement.
- AC variable drive for adjustment of line speed.
- Ease of compatibility with any extruder.
- Easily removable Rubber pads.
- Optional Servo Motors with the drive for minimum line speed up to 1% of the maximum speed available on request.
- Higher Line Speed Model available on request.
- State-of-the-art electrical panel with internationally standard components used.
For the technical specifications, please contact

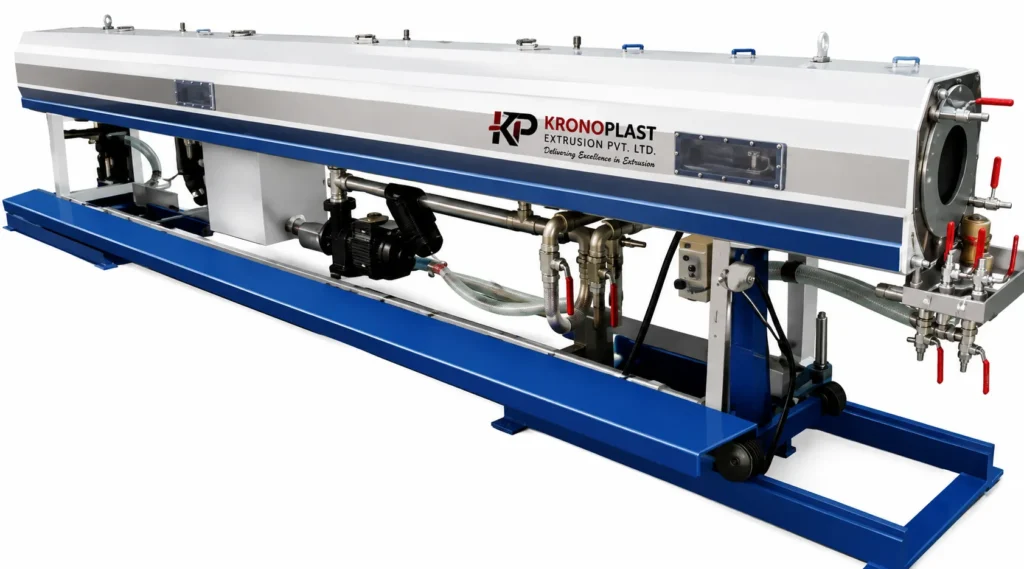

Pipe Cooling Tank / Extended Cooling Tank
Pipe Cooling Tank is also available for pipe sizes ranging from 20mm to 630mm. It is also manufactured by Wintech Industries with great precision and accuracy.
Salient Features :
- Extended Cooling Tank available in mild steel as well as in SS 304.
- Easy cleaning of the spray nozzles.
- Manual and effortless height adjustment.
- Lid made of mild steel or SS 304.
- Aluminum cast Lids with rubber sealing to avoid vacuum loss.
- Manual or fixed type structure arrangement depending upon the application.
- Special filter for cleaning during operation.
- Appropriate working platform for ease of operation.
For the technical specifications, please contact

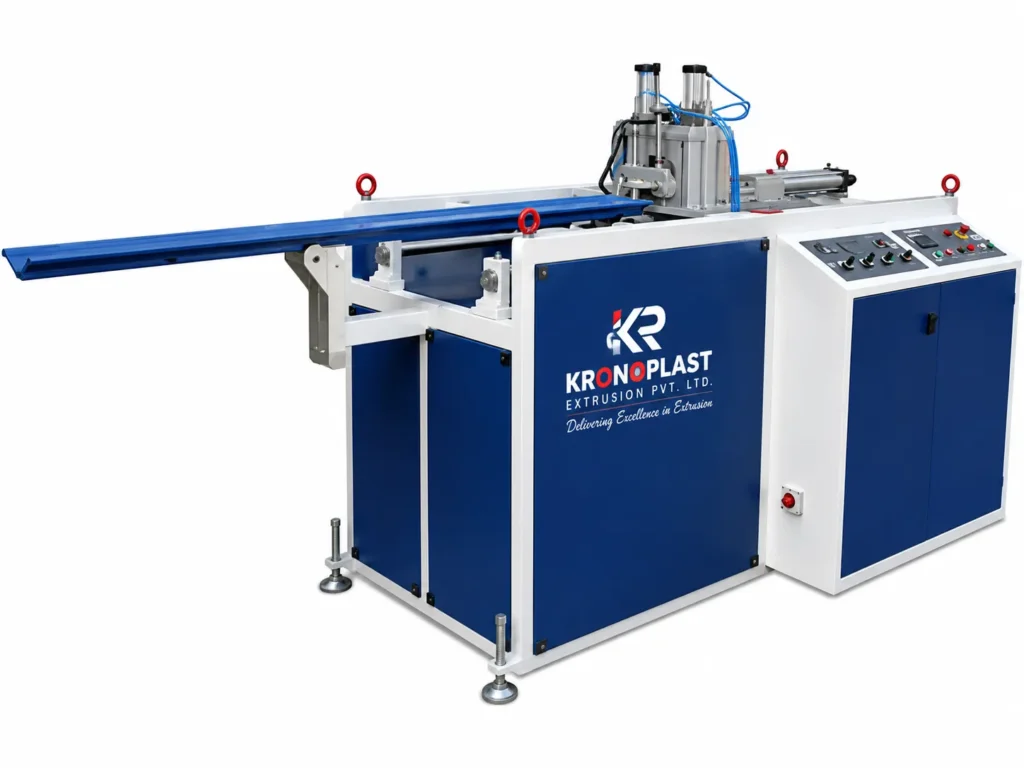

Pipe / Tube Cutting Unit
We recommend the Planetary cutter on or above 315mm Pipe Size. For the technical specifications, please contact Tirupati Industries.
Note: PCU with Universal Clamping Jaw.
Salient Features :
- Smooth and clean pipe cutter unit with easy movement of the table on linear bearing
- Pneumatically operated carriage unit.
- Synchronized with the line speed by precise length counter and accurate Encoder
- Carbide Tipped Circular Saw Blades for the cutting of the higher pipe thickness
- Diamond Cutter especially for thin pipe
- Pneumatically operated Jaw to clamp pipe properly for easy cutting.
- Electrical Panel with standard electrical components
For the technical specifications, please contact

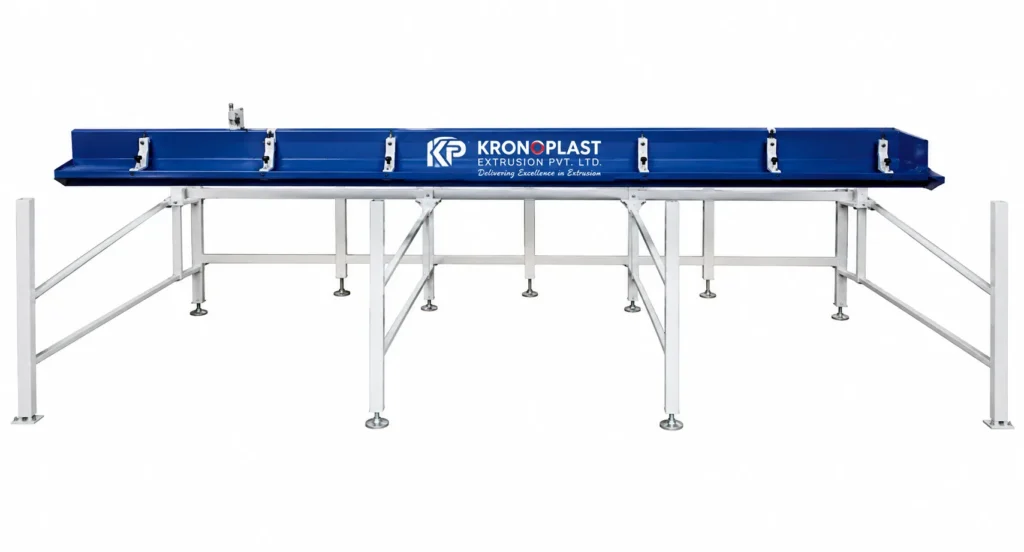

Pipe Tilting Unit
- Pipe Tilting Unit with sturdy structure.
- Pneumatically operated unit.
- Pipe Resting Platform above 200mm diameter pipe.
- Limit Switch Actuation for proper tilting of pipe.
For the technical specifications, please contact
